Faucet Construction

Gana Co., Ltd. strives to be a growing company together with our customers.

Faucet Construction Jig

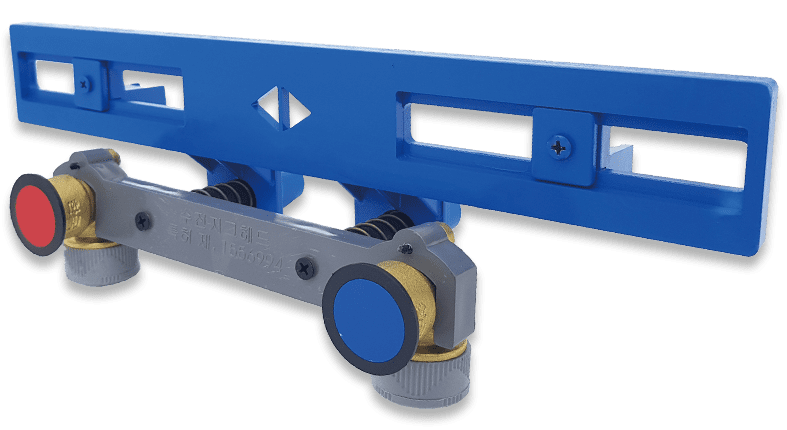

Spring-Type Faucet Construction Jig
(General)

The spring type adjusts the length by adjusting the spring based on the thickness of the wall. It is easier to build than the support type. A fixed frame and a movable frame can be selected.
Components of Faucet Construction Jig

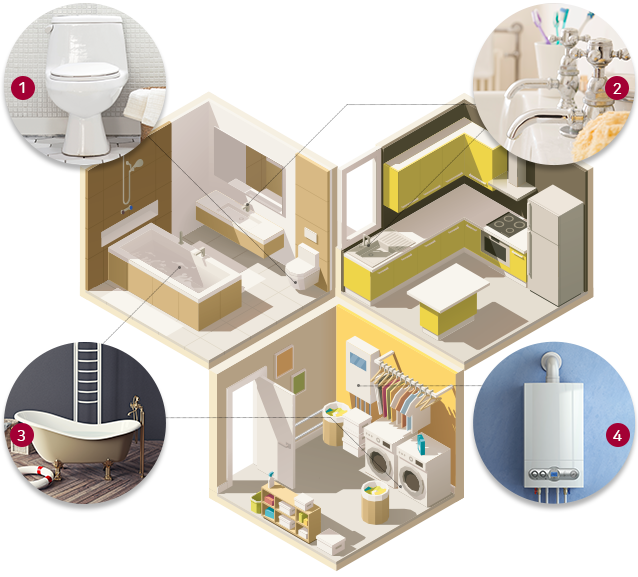

Product specifications and purpose

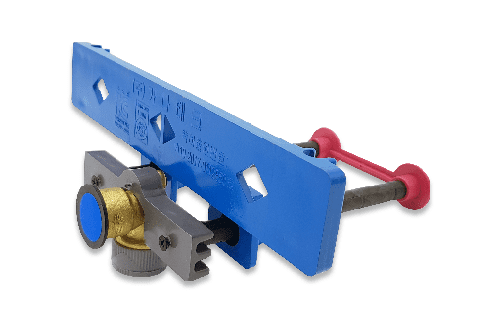

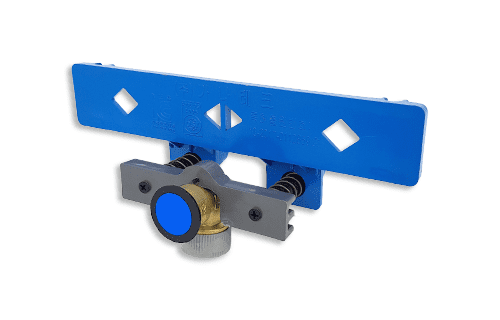

1-hole product

Pipe Spacing1 Hole, For Cold Water

PurposeToilet, Porch Faucet

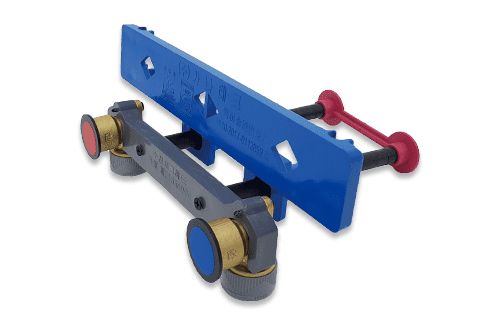

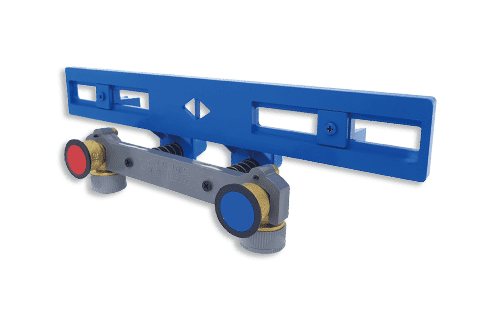

2-Hole 160mm Product

Pipe Spacing160mm, Cold and Hot Water

PurposeBathtub, Shower, Washing Machine

2-Hole 120mm Product

Pipe Spacing120mm, Cold and Hot Water

PurposeSink, Basin

2-Hole 120mm Product

Pipe Spacing120mm, Cold and Hot Water

PurposeSink, Basin

2-Hole 160mm Product

Pipe Spacing160mm, Cold and Hot Water

PurposeSink, Basin, Washing Machine

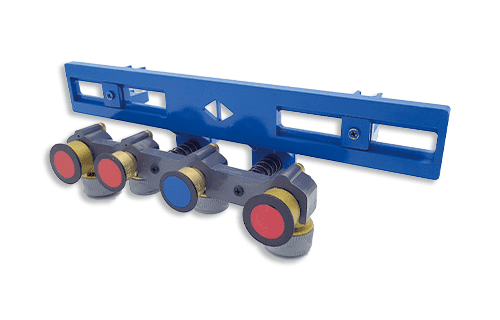

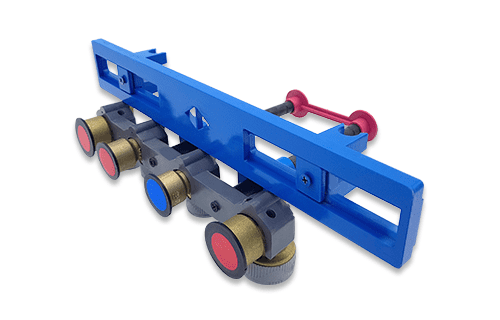

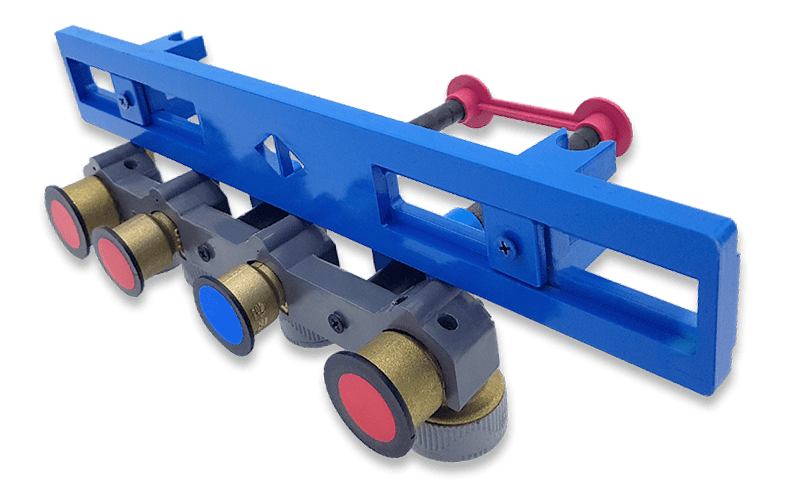

4-Hole Boiler Product

Pipe SpacingDifferent per Boiler Model

PurposeFor Boiler Piping

Frame

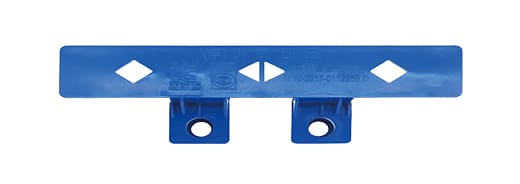

Fixed Frame

The fixed frame is used by attaching onto the mold structure with the fixed product in between the rebar chairs. (All products compatible)

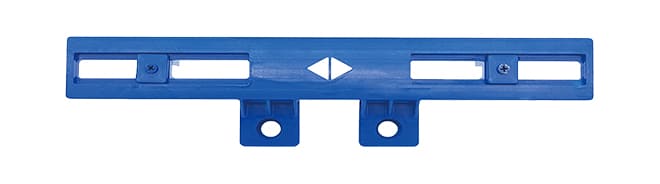

Movable Frame

The movable frame is used by attaching onto the mold structure and adjusting the width of the rebar chairs. (All products compatible)
